Overview
CO Series
Review the IMI STI CO range, actuation options, typical standards and technical documents, then submit an inquiry.
BrandIMI STI
CategoryAccessories
Product series1
IMI STI / Accessories
CO Series
Review the IMI STI CO range, actuation options, typical standards and technical documents, then submit an inquiry.
Available configurations
Choose by size and material
Compare interfaces, materials, performance and service ranges, then add the models you need to your inquiry.
| Model | Port | Material | Performance / function | Pressure | Temperature | Certification | Document / inquiry |
|---|---|---|---|---|---|---|---|
| CO 1/4CO | 1/4 in output | 1/4 in output; 1/8 in pilot | Anodized or painted aluminium / SS316 | Cv max 1-45 by configuration | 2.5-7 bar; 10 bar design | -20 to +70°C | SIL 3 | Datasheet ↗ |
| CO 1/2CO | 1/2 in output | 1/2 in output; 1/8 in pilot | Anodized or painted aluminium / SS316 | Cv max 1-45 by configuration | 2.5-7 bar; 10 bar design | -20 to +70°C | SIL 3 | Datasheet ↗ |
| CO 1CO | 1 in output | 1 in output; 1/4 in pilot | Anodized or painted aluminium / SS316 | Cv max 1-45 by configuration | 2.5-7 bar; 10 bar design | -20 to +70°C | SIL 3 | Datasheet ↗ |
| CO 1 1/2CO | 1 1/2 in output | 1 1/2 in output; 1/4 in pilot | Anodized or painted aluminium / SS316 | Cv max 1-45 by configuration | 2.5-7 bar; 10 bar design | -20 to +70°C | SIL 3 | Datasheet ↗ |
| CO 2CO | 2 in output | 2 in output; 1/4 in pilot | Anodized or painted aluminium / SS316 | Cv max 1-45 by configuration | 2.5-7 bar; 10 bar design | -20 to +70°C | SIL 3 | Datasheet ↗ |
Product series
Explore available configurations
Review models, interfaces, performance and documents in this series, then add the products you need to your inquiry.

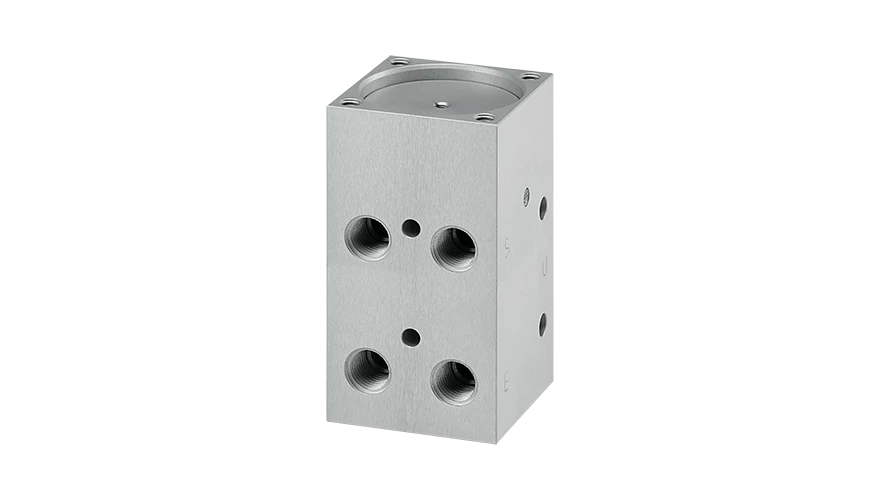

CO 3-Way Valve Series
High-flow pneumatic 3-way valve and commutator for safety, trip and shutdown service, with manifold mounting and SIL 3 certification.
- Product seriesCO
- Function3-way pneumatic commutation
- Port1/4 to 2 in output connections
- CertificationSIL 3
